GNT’s AP Stations are used to establish a local WiFi network Access Point for streaming data wirelessly between GNSS Stations and the PS100 Local Server (or the LC100 GNSS Logic Controller).

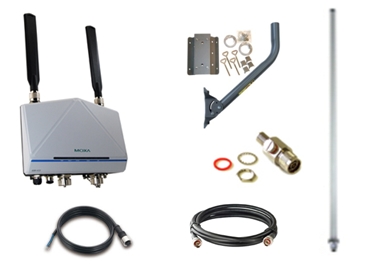

Access point, omni-directional antenna, antenna mounting pole, low-loss antenna cable, lighting arrestor and power cable.

Actual model may differ from the ones illustrated.

Features:

  • IEEE 802.11a/b/g network compatible access point

  • High gain 12 dB omni directional antenna

  • PWR, FAULT, STATE, WLAN and LAN LED indicators

  • Secure data access with WEP, WPA, WPA2

  • Lightning protection

  • Adjustable antenna mounting pole

  • Low-loss LMR-400 antenna cable

  • Supports long distance communications

Other Necessary Components:

  • Power source

  • Weather protection





AP specifications

WLAN interface

802.11a/b/g

Regulatory Approvals

Safety: EN60950-1, UL60950-1
EMC: EN301 489-1/-17, FCC Part 15, EN55022/55024, IEC61000-6-2/-4
Environmental: EN50155 (Environmental), EN50121-1/-4 (Environmental), Directive 72/245/EEC (for e/E-mark)
Hazardous Location: UL/cUL Class I, Div. 2; ATEX Class I, Zone 2
Radio: EN300 328, EN301 893, ARIB STD-33/T66/T71 (Japan)

WLAN Transmission Distance

Up to 10000 m (in open areas)

WLAN Antenna Connector

Reverse SMA

Dimensions

100 x 111 x 26 mm (3.94 x 4.37 x 1.02 in) with ears, without antenna

Casing

Aluminium

Weight

1.5 kg (3 lbs.)

Operating Temperature

-40 to 75 oC

Power Consumption

300 mA @ 24 V, 12 to 48 VDC
