GNT GPS Autosteer Controller is used to derive GPS-based real-time dynamics (position, heading, velocity and acceleration) of the vehicle and generate steering commands for the vehicle.

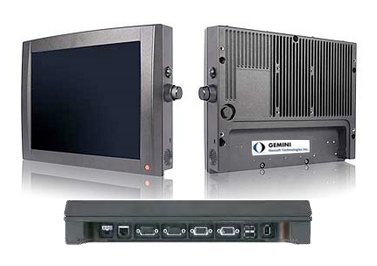

Rugged industrial panel PC

Actual model may differ from the one illustrated.



Features:

  • Preloaded and preconfigured SteerVu™ software (RoverVu module)

  • Ethernet interface with the GPS receivers

  • CAN (Controller Area Network) interface with the vehicle

  • Solid, one piece design (CPU, display, power supply and connection ports, all integrated into the single unit)

  • Shock and vibration tested

  • Environmentally sealed to IP65

Options:

  • High resolution resistive touch screen with a sunlight viewable display

  • Mounting bracket

  • Remote upgrades (requires internet connection)

Other Necessary Components:

  • Communications connection (LAN or WLAN)

  • Power source





The Rugged Industrial Panel PC  is typically used when the highest level of reliability is required under harsh conditions.

CPU

Intel Core duo (1.6 GHz)

Memory

DDR SODIMM 2 GB

Storage

Hard Drive 60 GB, 2.5” ATA/IDE

Networking

Ethernet 10/100-TP, RJ45

Cisco 802.11 b/g Wi-Fi Card with Dome Kit

USB

2 USB 2.0 High Speed ports

Serial

2 RS232

Operating System

Windows XP Professional

Windows Vista (optional)

Case

Aluminum housing, powder coated

Dimensions

305 x 240 x 61 mm (12 x 9.3 x 2.4″)

Weight

3.7 kg (8.2 lbs)

Operating Temperature

-20 – 50 oC

Power

9-36 VDC

110/220 VAC @ 60/50 Hz (optional)

Power Consumption

5W standby, 25W operating, and max 45W at full CPU load
