GNT CAN USB Interface is used to to easily connect several CAN interfaces to a standard PC.

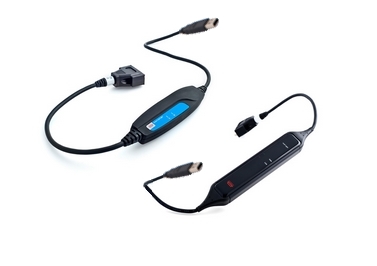

CAN USB Interface: regular (top) and rugged (bottom)

Actual model may differ from the ones illustrated.



Features:

  • Time-stamped CAN messages with a precision of 100 microseconds

  • Handles up to 8000 messages per second

  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers

  • Fully compatible with all higher layer protocols including J1939 and CANopen

  • Supports data and remote frames

  • Detects error frames

  • Interfaces the CAN bus with a 9-pin D-SUB connector

Options:

  • Rugged CAN USB interface for applications in hostile environments





The Rugged CAN USB Interface is typically used in hostile environments where dust and water are the norm.

CAN channels

1 (CAN 2.0A and 2.0B active)

CAN Connector

9-pin male DSUB

CAN cable length

30 cm (1 ft)

USB Interface

Designed for USB 2.0, backward compliant with USB 1.1

USB connector

USB standard type “A” plug

USB cable length

110 cm (3.61 ft)

Hardware requirements

IBM PC AT or 100% compatible; USB host socket

Operating System

Windows 98, ME, 2000, XP, Server 2003, Vista

Case

Black plastic

Black anodized aluminium (rugged)

Dimensions

25 x 100 x 20 mm (1 x 4 x 0.8″)

30 x 140 x 18 mm (1.2 x 5.5 x 0.7″) (rugged)

Weight

105 g (0.23 lbs)

155 g (0.34 lbs) (rugged)

Operating Temperature

-20 – 75 ˚C

-40 – 85 ˚C (rugged)

Power

5V and approx. 70mA powered from the USB side

Power Consumption

Low power consumption
