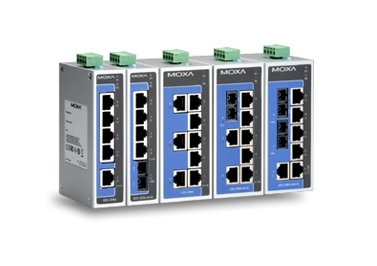

5 and 8-port unmanaged Ethernet switches

Actual model may differ from the ones illustrated.

Features:

• 5 and 8-port industrial Ethernet switches

• supports IEEE 802.3 and IEEE 802.3u/x with 10/100M full/half-duplex, MDI/MDI-X auto-sensing

• 10/100BaseT(X) (RJ45 connector), 100BaseFX (multi/single-mode, SC or ST connector)

• Redundant dual 12/24/48 VDC, 18 to 30 VAC power inputs

• Rugged hardware design well suited for hazardous locations (Class I Div. 2 /ATEX) and maritime environments (DNV/GL)

Other Necessary Components:

• Power source

• Weather protection

Standards

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for Flow Control

Regulatory Approvals

Safety: UL 508
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS: EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8, EN 61000-4-11

Hazardous Location: UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nC IIC

RJ45 Ports Interface

10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection

Dimensions

30 x 115 x 70 mm (1.18 x 4.52 x 2.76 in)

Casing

Aluminum, IP30 protection

Weight

175 g (0.38 lbs.)

Operating Temperature

-40 to 75 ^oC

Power Consumption

0.1 A @ 24 V, 12/24/48 VDC (9.6 to 60 VDC), 18 to 30 VAC (47 to 63 Hz), redundant dual inputs
