GNT GPS Stations are used to monitor vehicle's dynamics and serve as reference stations.

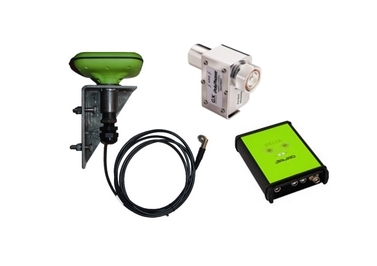

GPS antenna, receiver and lightening arrestor

Actual model may differ from the ones illustrated.

Features:

  • Survey grade, GPS receiver with 1 Hz data rate rate (up to 100 Hz)

  • Survey grade GPS Antenna with 3 m cable

  • Lightning Arrestor

  • Antenna mounting bracket (mounting rod separate)

Options:

  • Antenna mounting pole

  • Extended length antenna cable

Other Necessary Components:

  • Communications connection (LAN or WLAN)

  • Power source

  • Weather protection

  • Antenna mounting hardware





Javad Delta G2T receiver with TriAnt Antenna  specifications and recommended configuration for the base stations.

Storage

None

Signal tracking

GPS L1/L2

Data communications

Ethernet

Raw data format

RTCM 3.x

Raw data update rate

@ 1 Hz

Dimensions

109 x 35 x 169 mm (4.29 x 1.38 x 6.65 inches)

Casing

Aluminum

Weight

1 kg (2 lbs)

Operating Temperature

-40 to 80 oC

Power Consumption

2.7 W, +4.5 to +35 VDC





Javad Delta G2T receiver with TriAnt Antenna  specifications and recommended configuration for the rovers.

Storage

None

Signal tracking

GPS L1/L2

Data communications

Ethernet

Raw data format

Javad proprietary data format (JPS)

Raw data update rate

@ 10 Hz (20-100 Hz: optional)

Dimensions

109 x 35 x 169 mm (4.29 x 1.38 x 6.65 inches)

Casing

Aluminum

Weight

1 kg (2 lbs)

Operating Temperature

-40 to 80 oC

Power Consumption

2.7 W, +4.5 to +35 VDC
