GNT GNSS Stations are used to monitor points of interest and serve as reference stations.

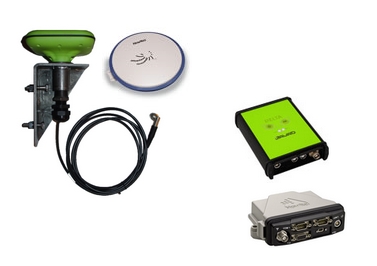

GNSS antennas (left) and receivers (right)

Actual model may differ from the ones illustrated.

Features:

  • Survey grade, GNSS receiver with 1 Hz data rate rate (up to 100 Hz)

  • Survey grade GNSS Antenna with 3 m cable

  • Lightning Arrestor

  • Antenna mounting bracket (mounting rod separate)

Options:

  • Onboard data storage

  • Antenna mounting pole

  • Extended length antenna cable

Other Necessary Components:

  • Communications connection (LAN or WLAN)

  • Power source

  • Weather protection

  • Antenna mounting hardware





Javad Delta G2T receiver with TriAnt Antenna  specifications and recommended configuration.

Storage

64 MB

Signal tracking

GPS L1/L2

Communications

RS232 @115,200 bps (up to 460,800 bps possible)

Dimensions

109 x 35 x 169 mm (4.29 x 1.38 x 6.65 inches)

Casing

Aluminum

Weight

1 kg (2 lbs)

Operating Temperature

-40 to 80 oC

Power Consumption

2.7 W, +4.5 to +35 VDC





NovAtel FlexPak-G2-V2 receiver with GPS-702L Antenna  specifications and recommended configuration.

Storage

64 MB

Signal tracking

GPS L1/L2

Communications

RS232 @115,200 bps (up to 921,600 bps possible)

Dimensions

147 x 113 x 45 mm (5.79 x 4.45x 1.77 inches)

Casing

Plastics

Weight

0.338 kg (2 lbs)

Operating Temperature

-40 to 75 oC

Power Consumption

2.0 W, +6 to +18 VDC
