Gemini Navsoft Technologies Inc.

GNT GPS Position Solver is used to generate mm level accuracy, GPS position solutions for locations instrumented with GNT GPS Stations.

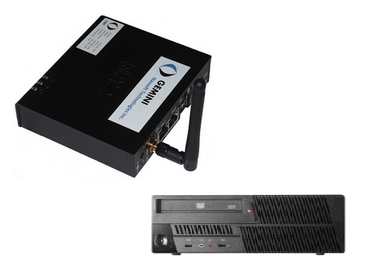

Field version (top) and desktop version (bottom)

Actual model may differ from the ones illustrated.

Features:

Options:

Other Necessary Components:

The Field Version of the GNT GPS Position Solver is typically used when power consumption is a concern.

CPU	Intel Atom Z550 2GHz / Z530
Memory	1GB / 2GB DDR2-533 on-board
Storage	Internal 60 GB SSD, external USB HDD
Networking	2x 1000 BaseT Ethernet (based on Realtek RTL8111) 802.11g WLAN (based on RaLink RT3090)
USB	4 USB 2.0 High Speed ports
Serial	RS232 full UART
Operating System	Windows 7 Professional
Case	100% aluminium, die cast body
Dimensions	101 x 115 x 27 mm (4″ x 4.5″ x 1.05″)
Weight	370 grams / 13 ounces – including hard disk
Operating Temperature	-20 – 70 ^oC
Power	12V single supply 8-15V tolerant
Power Consumption	6W at low CPU load 8W at full CPU load 1W at standby

The Desktop Version of the GNT GPS Position Solver is typically used when maximum computational power is required.

CPU	Intel Core i5-650 (3.20GHz)
Memory	2GBx2 PC3-10600 DDR3 UDIMM on-board
Storage	Internal 500GB 7200rpm SATA, external USB HDD
Networking	2x 1000 BaseT Ethernet (separate, long range WiFi USB device used)
USB	6 USB 2.0 High Speed ports
Serial	Option
Operating System	Windows 7 Professional
Case	Small form factor (10 L), Chassis Intrusion Switch
Dimensions	101 x 115 x 27 mm (4″ x 4.5″ x 1.05″)
Weight	3 kg (7 lbs)
Operating Temperature	0 – 40 ^oC
Power	120 VAC, Energy Star 5.0 Rating
Power Consumption	55W at full CPU load
