GNT’s  Solar power supply option is used when AC power is not available at the sensor location.

Power supply

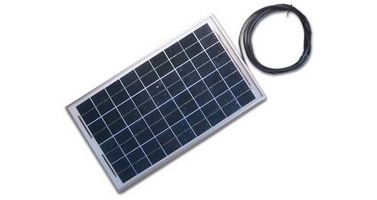

Actual model may differ from the one illustrated.

Features:

  • Customizable solar solutions to suit solar exposure of geographic location





Example Solar Components for a 0.785 A system


KD135GX-LFBS 135W 12V Module, Blue Cells


UNI-SP/01XH Side-of-Pole W/27.5" Support


Solklamp Grounding bolt 6-8 AWG Solid


Key for MC Solarline 2 Locking Connector


30' MC2 Connector Extension #10 AWG


1/2" Strain Relief with 2 Round Holes


1/2" Strain Relief with 1 Round Hole


Steel Locknut for 1/2" Strain Reliefs


MNPV3 Combiner Box


15 Amp Din Rail Mount Breaker


LA302 DC Lightning Arrestor


SUNSAVER SS20L 20A,12V Charge Controller


BabyBox 4 Slot AC or DC Breaker Panel


30 Amp Din Rail Breaker


8A31 AGM 105 Ah (20 Hr) AGM Battery


Battery Interconnect Cable 2/0 8" Black and Red


E2-250 2 Battery Enclosure, Screw Cover


Mounting Brackets (2 to 8" Pole)
