GS100 GNSS Station

Overview

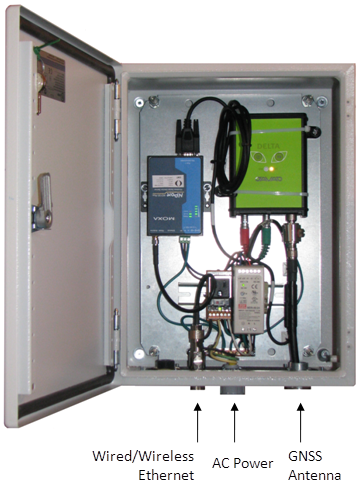

GNT's GS100 is used to monitor a point of interest or serve as a reference station. GS100 incorporates a geodetic quality GNSS receiver and antenna, a wired and wireless Ethernet‐to‐serial controller and an optional, high volume, data logger. GNT offers two types of GNSS stations: single-frequency GNSS station (SGS100) and dual-frequency GNSS station (DGS100).


Features

The SGS100 and DGS100 provide the following capabilities:

• Real‐time GNSS data transmission to the PS100 Local Server computer

• Real‐time GNSS data logging

• Remote access and control of the data logger and GNSS receiver

• Ethernet communications via a wired and/or wireless Internet network

• Configurability to work with AC or DC power sources

Communications

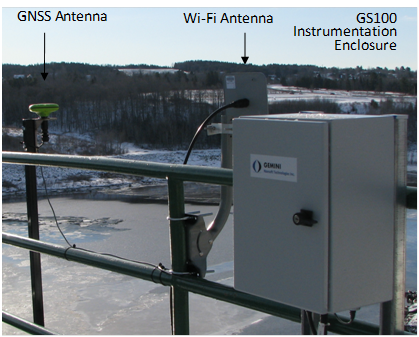

The SGS100 and DGS100 communicate with the PS100 over a wired or wireless local area network. The wireless option allows users to simplify the installation of a monitored station in challenging environments. For applications where Internet communications do not exist, GNT can implement local network infrastructure to facilitate on site data streaming.


Data Handling

The SGS100 and DGS100 transmit data to the PS100 for real‐time processing. When continuous data is a priority, GNSS data can also be simultaneously stored locally by utilizing the GS100 data logger option. Users can access the data logger remotely to download the stored data anytime.


Field Ready

The SGS100 and DGS100 comes preconfigured and ready for installation. Settings may be customized for individual applications. GS100 and antenna mounting hardware are also available.
