Model
Specifications |
PS100 Basic |
PS100 Plus |
|
CPU |
AMD G-T56N, 64 bit dual core, 1.65 GHz |
Intel Core i7-3517UE, 64 bit dual core,
1.7 GHz |
|
Memory |
4 GB, DDR3-1066, SO-DIMMx2 (up to 8 GB
configurable) |
4 GB, DDR3-1333, SO-DIMMx2 (up to 16 GB
configurable) |
|
Storage |
250 GB, Internal 2.5” hard disk (up to
500 GB configurable) |
250 GB, Internal 2.5” hard disk (up to
500 GB configurable) |
|
Networking |
1000 BaseT Ethernet, Wi-Fi 802.11b/g/n,
Bluetooth® 3.0 |
2x1000 BaseT Ethernet, Wi-Fil
802.11b/g/n, Bluetooth® 3.0 |
|
USB |
2 USB 3.0, 6 USB 2.0 |
2 USB 3.0, 6 USB 2.0 |
|
Serial |
RS232 ultra mini serial connector |
RS232 ultra mini serial connector |
|
Operating System |
Windows 7 Professional |
Windows 7 Professional |
|
Dimension |
190x160x40 mm (7.5x6.3x1.6”) |
190x160x40 mm (7.5x6.3x1.6”) |
|
Power |
Unregulated 10 to 16 volt input |
Unregulated 10 to 16 volt input |
|
Power Consumption |
7W–24W |
8W–27W |
|

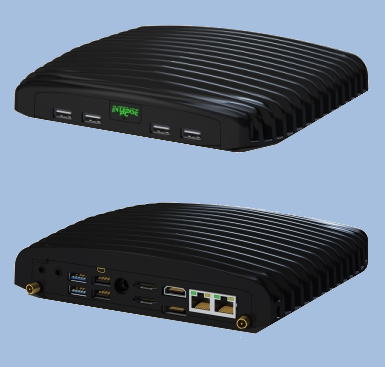

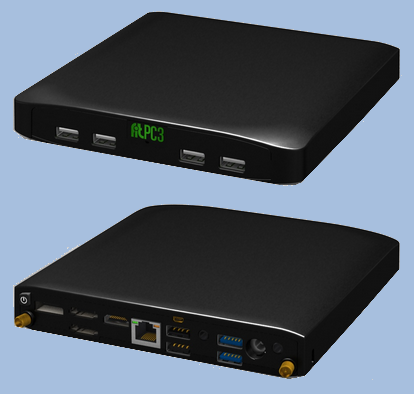

Sample Product Images |
 |
 |
|
Preinstalled mmVu™ Software Package |
Basic |
Plus |
